Automated Curtain System

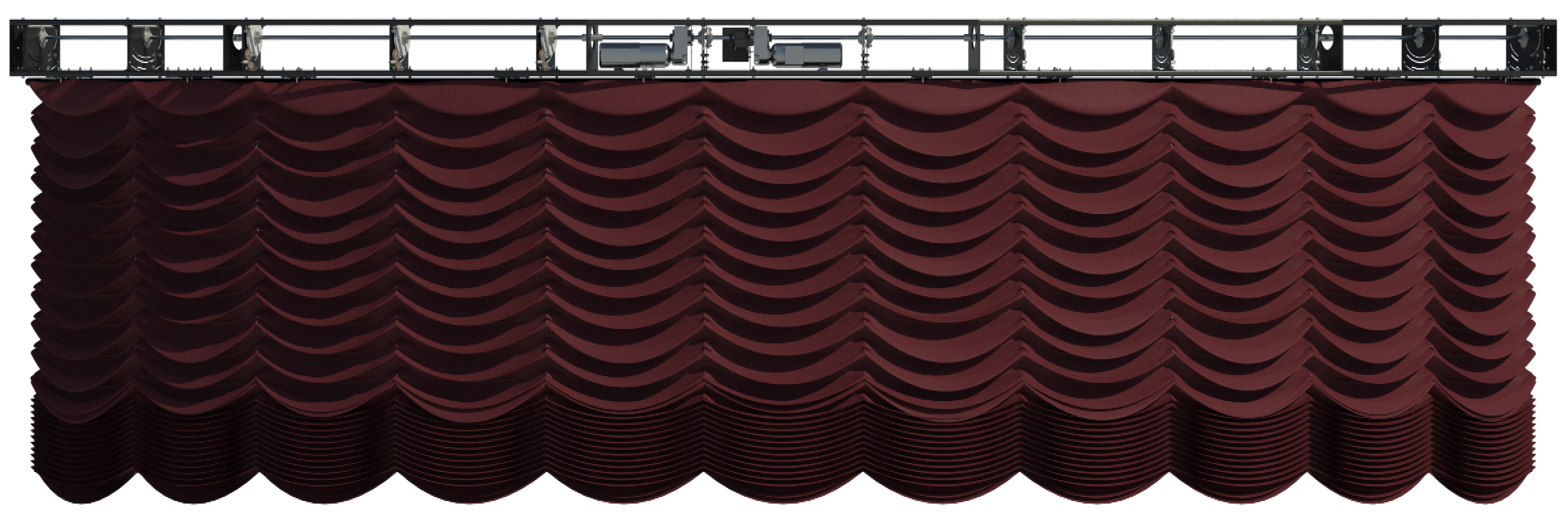

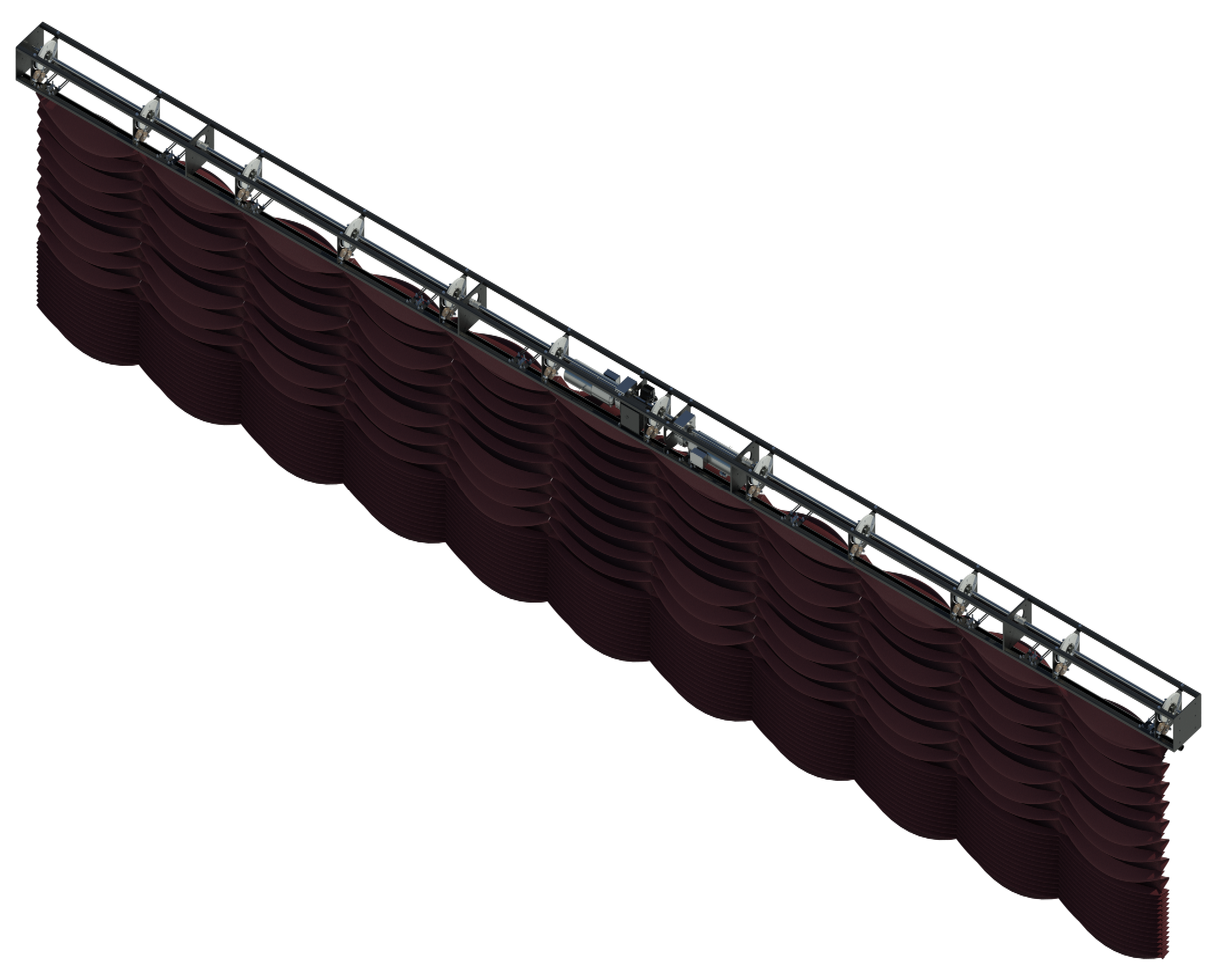

The IWEISS Automated Curtain System (ACS) is a versatile line-shaft mechanism designed to raise
and lower various fabric curtains in both straight and curved orientations. It utilizes yo-yo style drums
that can be positioned anywhere along a continuous drive shaft, allowing for flexible drum placement
across the system’s width. Powered by a three-phase gear motor equipped with a primary brake, the
entire assembly is enclosed within a light-gauge steel frame featuring a universal hole pattern. This
design facilitates diverse drum locations, rigging suspension attachments, and accommodates various
customization options
Standard ACS units are pre-engineered to handle lifting loads of up to 500 pounds, operating at fixed or variable speeds ranging from 0 to 180 feet per minute. For precise positioning, options include run-to limit switches or absolute encoders. The ACS is suitable for a wide array of curtain types, including brail, Austrian, display, masking, and acoustical curtains, making it a comprehensive solution for diverse stage and venue requirements.
SPECIFICATIONS
| Size | 12”w x 14”h x 8ft and 10ft straight or segmented sections. |
| System Weight | Average of 22 lbs per foot |
| Lift Capacity | 500 lb curtain capacity in standard configuration. Alternate motor and gearing solutions are available for heavier loads or faster speeds. |
| Speed | 0-180ft/min |
| Motor | 3-Phase bevel gearmotor with primary brake |
| Power | 208V, 3-phase, 20A standard |
| Finish | Black powder coat |
